Enable Bot on your Shopify Store

Adding the Crescendo.ai Bot to your storefront lets shoppers chat with an AI assistant that can:

• Answer product questions 24 × 7
• Proactively surface order status, shipping updates, and more
• Pass rich customer context (email, phone, last order) directly to the bot

Even if you have a heavily-customised theme, the process below is the same—the widget lives in a Liquid section that you drop anywhere (we recommend the footer so it appears on every page).

Prerequisites

What you need	Where to get it
Org ID	Crescendo will provide
Bot ID	Crescendo.ai dashboard → Assistants → Your Assistant → ID
Shopify theme access	Shopify Admin → Online Store → Themes → … → Edit code
Dawn 9.0+ (or derivative)	Any theme works; screenshots use Dawn

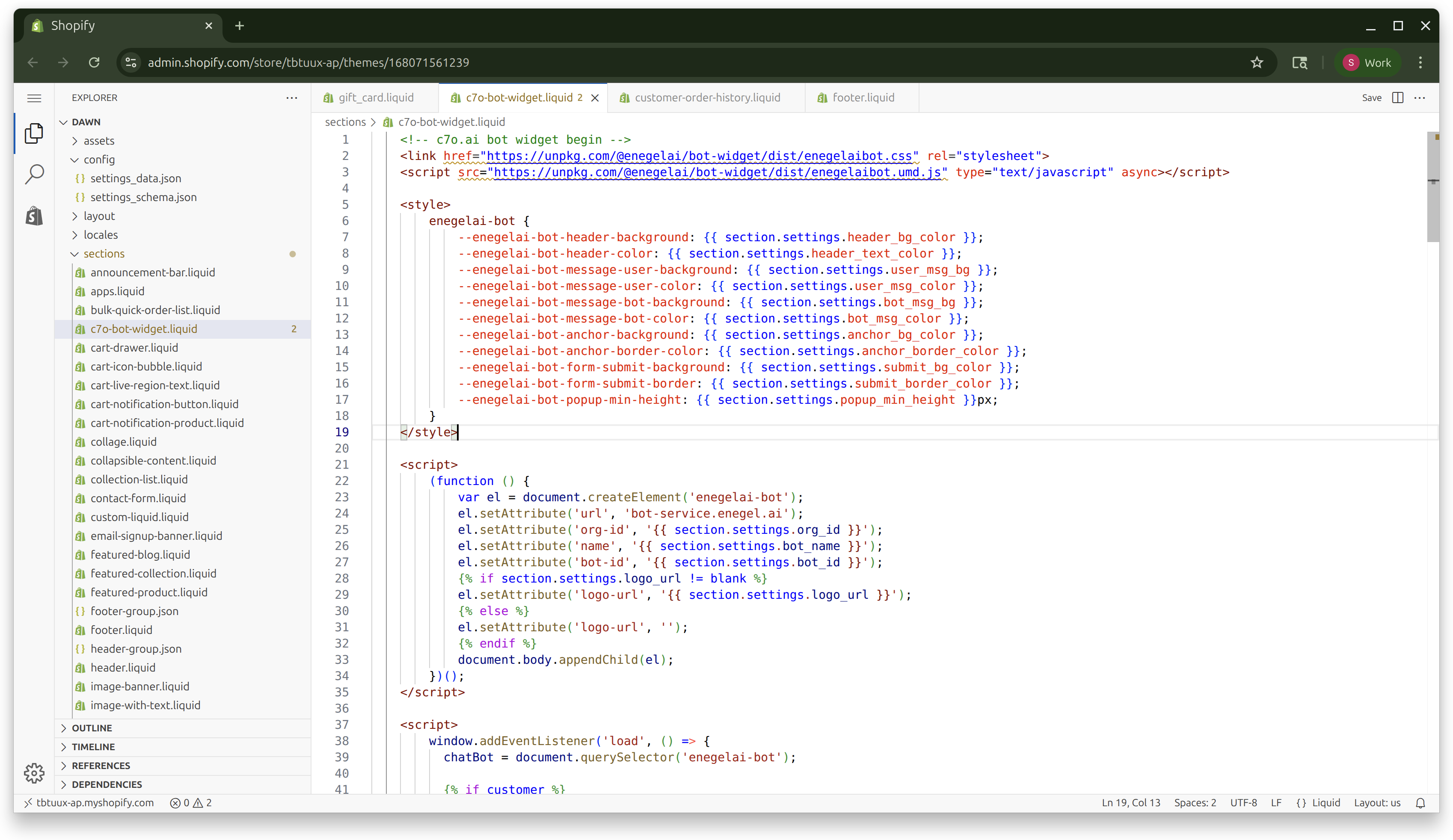

1 · Create the section c7o-bot-widget.liquid

1. In Shopify Admin open Online Store → Themes.
2. Find your Current theme, click … → Edit code.
3. In the left sidebar, Add a new file under sections.
4. Name the file c7o-bot-widget.liquid.

5. Replace the empty file with exactly the code below (copy & paste everything, including {% schema %}):

<!-- c7o.ai bot widget begin -->
<link href="https://unpkg.com/@enegelai/bot-widget/dist/enegelaibot.css" rel="stylesheet">
<script src="https://unpkg.com/@enegelai/bot-widget/dist/enegelaibot.umd.js" type="text/javascript" async></script>

<style>
    enegelai-bot {
        --enegelai-bot-header-background: {{ section.settings.header_bg_color }};
        --enegelai-bot-header-color: {{ section.settings.header_text_color }};
        --enegelai-bot-message-user-background: {{ section.settings.user_msg_bg }};
        --enegelai-bot-message-user-color: {{ section.settings.user_msg_color }};
        --enegelai-bot-message-bot-background: {{ section.settings.bot_msg_bg }};
        --enegelai-bot-message-bot-color: {{ section.settings.bot_msg_color }};
        --enegelai-bot-anchor-background: {{ section.settings.anchor_bg_color }};
        --enegelai-bot-anchor-border-color: {{ section.settings.anchor_border_color }};
        --enegelai-bot-form-submit-background: {{ section.settings.submit_bg_color }};
        --enegelai-bot-form-submit-border: {{ section.settings.submit_border_color }};
        --enegelai-bot-popup-min-height: {{ section.settings.popup_min_height }}px;
    }
</style>

<script>
    (function () {
        var el = document.createElement('enegelai-bot');
        el.setAttribute('url', 'bot-service.enegel.ai');
        el.setAttribute('org-id', '{{ section.settings.org_id }}');
        el.setAttribute('name', '{{ section.settings.bot_name }}');
        el.setAttribute('bot-id', '{{ section.settings.bot_id }}');
        {% if section.settings.logo_url != blank %}
        el.setAttribute('logo-url', '{{ section.settings.logo_url }}');
        {% else %}
        el.setAttribute('logo-url', '');
        {% endif %}
        document.body.appendChild(el);
    })();
</script>

    <script>
        // Attributions - update cart attributes with tags and note
        async function updateCartTags(tags = {}) {
          try {
            const attributes = {
              bot_conversation_id: tags?.bot_conversation_id || '',
              bot_source: tags?.bot_source || 'crescendo',
              bot_timestamp: Date.now(),
              ...tags // Allow additional custom tags
            };

            const note = "crescendo";

            const res = await fetch(`${window.Shopify.routes.root}cart/update.js`, {
              method: 'POST',
              credentials: 'same-origin',
              headers: {
                'Content-Type': 'application/json',
                'Accept': 'application/json'
              },
              body: JSON.stringify({
                attributes,
                note: note
              })
            });

            const cart = await res.json();
            console.log('c7o bot: Cart tags and note updated successfully', {
              attributes: cart.attributes,
              note: cart.note
            });
            return cart;
          } catch (error) {
            console.error('c7o bot: Failed to update cart tags', error);
          }
        }

        // Resolve Cart
        async function resolveStorefrontCartGid() {
          let cartId = null;
          // 1) Try the 'cart' cookie first. Since May 2024 it includes ?key=... .
          const cookieMatch = document.cookie.match(/(?:^|;\s*)cart=([^;]+)/);
          if (cookieMatch) {
            const tokenWithKey = decodeURIComponent(cookieMatch[1]);
            if (tokenWithKey.includes('?key=')) {
              cartId = `gid://shopify/Cart/${tokenWithKey}`;
            }
          }
          // 2) Fallback to Ajax Cart JSON if cookie didn't work
          if (!cartId) {
            const res = await fetch(`${window.Shopify.routes.root}cart.js`, {
              credentials: 'same-origin',
              headers: { 'Accept': 'application/json' },
              cache: 'no-store'
            });
            const cart = await res.json();
            if (cart?.token && cart.token.includes('?key=')) {
              cartId = `gid://shopify/Cart/${cart.token}`;
            }
          }
          // 3) Final fallback: "warm up" the cart with a no-op update
          if (!cartId) {
            const upd = await fetch(`${window.Shopify.routes.root}cart/update.js`, {
              method: 'POST',
              credentials: 'same-origin',
              headers: { 'Content-Type': 'application/json', 'Accept': 'application/json' },
              body: JSON.stringify({ attributes: { _bot_probe: String(Date.now()) } })
            });
            const updated = await upd.json();
            if (updated?.token && updated.token.includes('?key=')) {
              cartId = `gid://shopify/Cart/${updated.token}`;
            }
          }
          return cartId;
        }

        window.addEventListener('c7o:bot:conversationStart', (event) => {
          console.log('c7o bot: conversationStart - updating Cart attributes', event.detail);
          const conversationId = event?.detail?.conversationId || `conv_${Date.now()}_${Math.random().toString(36).substr(2, 9)}`;
          updateCartTags({
            bot_conversation_id: conversationId,
            bot_source: 'crescendo',
            bot_initiated: new Date().toISOString()
          });
        });

        window.addEventListener('load', async () => {
          chatBot = document.querySelector('enegelai-bot');
          const contextData = {};
          {% if customer %}
            console.log(`c7o bot: Setting Bot Context - customer: {{ customer.email }}`);
            contextData.email = '{{ customer.email }}';
            contextData.phone = '{{ customer.phone }}';
            contextData.name = '{{ customer.name }}';
            try {
              {% if customer.last_order %}
                contextData.last_order = {
                  order_number: '{{ customer.last_order.order_number }}',
                  created_at: '{{ customer.last_order.created_at }}',
                  order_status_url: '{{ customer.last_order.order_status_url }}',
                  fulfillment_status: '{{ customer.last_order.fulfillment_status }}',
                  line_items: []
                }
                {% if customer.last_order.line_items.size > 0 %}
                    {% for item in customer.last_order.line_items %}
                      contextData.last_order.line_items.push({
                        title: '{{ item.title }}',
                        quantity: {{ item.quantity }}
                      })
                    {% endfor %}
                {% endif %}
                {% if customer.last_order.fulfillment.tracking_url %}
                  contextData.last_order.fulfillment = {
                    tracking_url = '{{ customer.last_order.fulfillment.tracking_url }}'
                  }
                {% endif %}
              {% endif %}
            } catch(e) {
              console.warn('c7o bot: not able to add last order information to context',e);
            }
          {% else %}
            console.log('c7o bot: Anonymous user - no customer data');
          {% endif %}
          // Cart ID with tagging
          try {
            // Resolve cart
            const cartId = await resolveStorefrontCartGid();
            if (cartId) {
              contextData.cart_id = cartId;
              console.log('c7o bot: Cart ID obtained', cartId);
            } else {
              console.warn('c7o bot: not able to get cartId');
            }
          } catch(e) {
            console.error('c7o bot: error getting/tagging cart', e);
          }
          chatBot.setContext(contextData);
        });
    </script>

{% schema %}
{
  "name": "Crescendo Bot Widget",
  "tag": "section",
  "class": "section",
  "presets": [{
    "name": "Crescendo Bot Widget",
    "category": "Footer"
  }],
  "settings": [
    {
      "type": "header",
      "content": "Bot Configuration"
    },
    {
      "type": "text",
      "id": "bot_name",
      "label": "Bot Name",
      "placeholder": "Bot Widget Name",
      "default": "Crescendo Bot",
      "info": "Name that will be displayed in the header of the widget"
    },
    {
      "type": "text",
      "id": "org_id",
      "label": "Org ID",
      "info": "Your Crescendo Org ID"
    },
    {
      "type": "text",
      "id": "bot_id",
      "label": "Bot ID",
      "info": "Your Crescendo bot identifier"
    },
    {
      "type": "text",
      "id": "logo_url",
      "label": "Logo URL",
      "placeholder": "https://example.com/logo.png",
      "info": "Optional custom logo"
    },
    {
      "type": "header",
      "content": "Bot Appearance"
    },
    {
      "type": "color",
      "id": "header_bg_color",
      "label": "Header Background Color",
      "default": "#00d176"
    },
    {
      "type": "color",
      "id": "header_text_color",
      "label": "Header Text Color",
      "default": "#ffffff"
    },
    {
      "type": "color",
      "id": "user_msg_bg",
      "label": "User Message Background",
      "default": "#fafafa"
    },
    {
      "type": "color",
      "id": "user_msg_color",
      "label": "User Message Text Color",
      "default": "#000000"
    },
    {
      "type": "color",
      "id": "bot_msg_bg",
      "label": "Bot Message Background",
      "default": "#fafafa"
    },
    {
      "type": "color",
      "id": "bot_msg_color",
      "label": "Bot Message Text Color",
      "default": "#000000"
    },
    {
      "type": "color",
      "id": "anchor_bg_color",
      "label": "Anchor Background Color",
      "default": "#00d176"
    },
    {
      "type": "color",
      "id": "anchor_border_color",
      "label": "Anchor Border Color",
      "default": "#00d176"
    },
    {
      "type": "color",
      "id": "submit_bg_color",
      "label": "Submit Button Background",
      "default": "#00d176"
    },
    {
      "type": "color",
      "id": "submit_border_color",
      "label": "Submit Button Border",
      "default": "#00d176"
    },
    {
      "type": "range",
      "id": "popup_min_height",
      "label": "Popup Minimum Height",
      "min": 40,
      "max": 100,
      "step": 10,
      "default": 60,
      "unit": "px"
    }
  ]
}
{% endschema %}

5. Save the file.

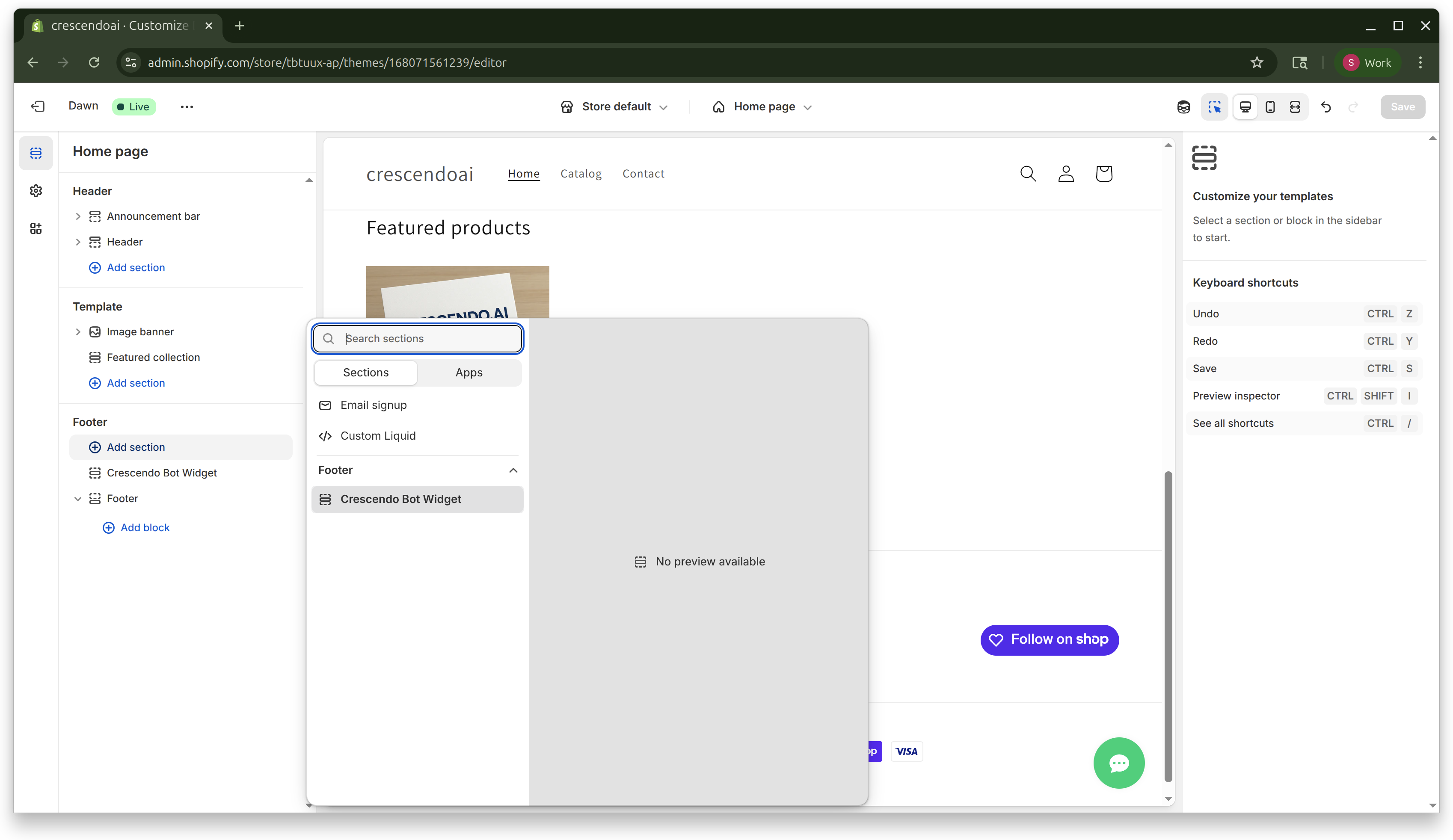

2 · Add the section to the Footer

1. Click Customize next to your theme (opens the Theme editor).
2. In the left panel, scroll down and select Footer.
3. Click Add Section → Crescendo Bot Widget.
4. Save the theme.

The widget won’t visibly appear in the preview yet—first you need to fill in your IDs.

---

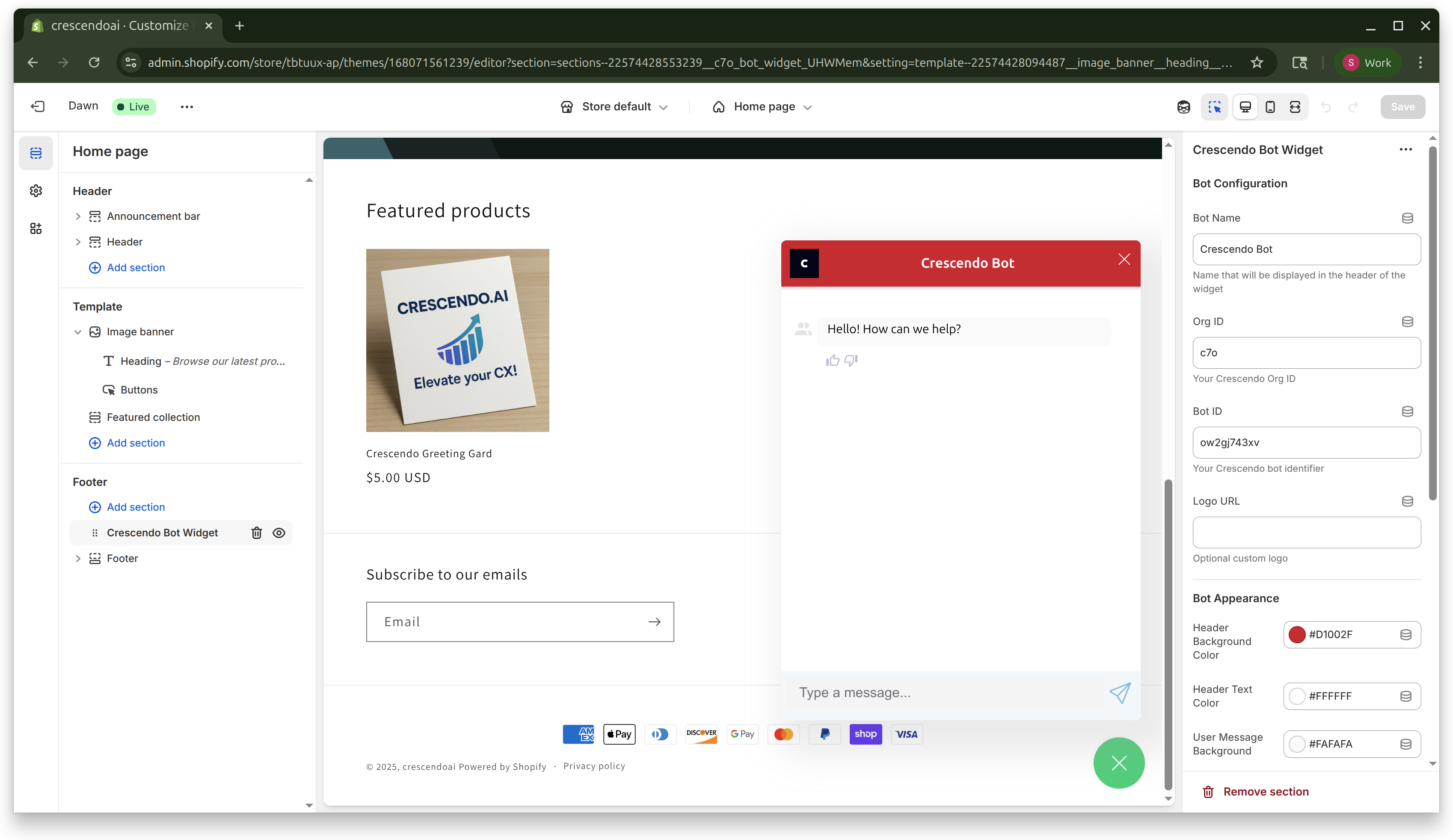

3 · Enter your Org ID and Bot ID

1. In the Theme editor, click the Crescendo Bot Widget block.
2. Under Bot Configuration, paste your Org ID and Bot ID.
3. Optionally set Bot Name and Logo URL.
4. Save.

Reload the storefront—an anchor button (chat icon) should appear bottom-right. Click it to open the chat window.

---

4 · Customise colours and size (optional)

Every setting under Bot Appearance maps to a CSS custom property:

Setting	Affects
Header Background/Text	Chat header bar
User / Bot Message BG & Color	Bubble colours
Anchor Background/Border	Floating button
Submit Button Background/Border	Buttons inside chat

See more details in the Enable Bot on your Website

Experiment with the colour pickers, then Save. Changes are live immediately.

---

5 · Troubleshooting

Widget not showing

• IDs missing – Ensure Org ID & Bot ID are saved (Step 3).
• Theme cache – Hard-refresh (Ctrl/⌘ + Shift + R) after saving.

Customers not auto-identified

The widget sets current customer context only when a visitor is logged-in to Shopify.
Ask the customer to sign in or create an account first.

You’re done! 🎉

Your Crescendo.ai bot is now embedded across every page of your store, ready to assist shoppers and boost conversions.
